Description

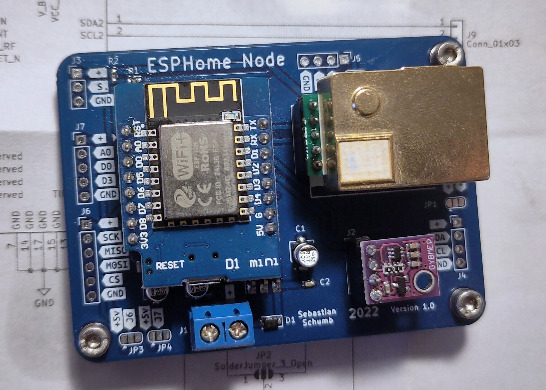

ESPHome Node
A breakout board for using the Wemos D1 Mini ESP8266 module with ESPHome and Home Assistant.
Features
- Footprint for the Wemos D1 Mini
- Footprint for the MH-Z19 CO2 sensor
- Footprint for the GY-BME280 module with the BME280 pressure, humidity and temperatur sensor.
- Pin headers with selectable 3.3v/5v power for
- USART
- SPI
- I2C
- One wire for additional DS18B20 temperature sensors
- Additional GPIOs and the ADC

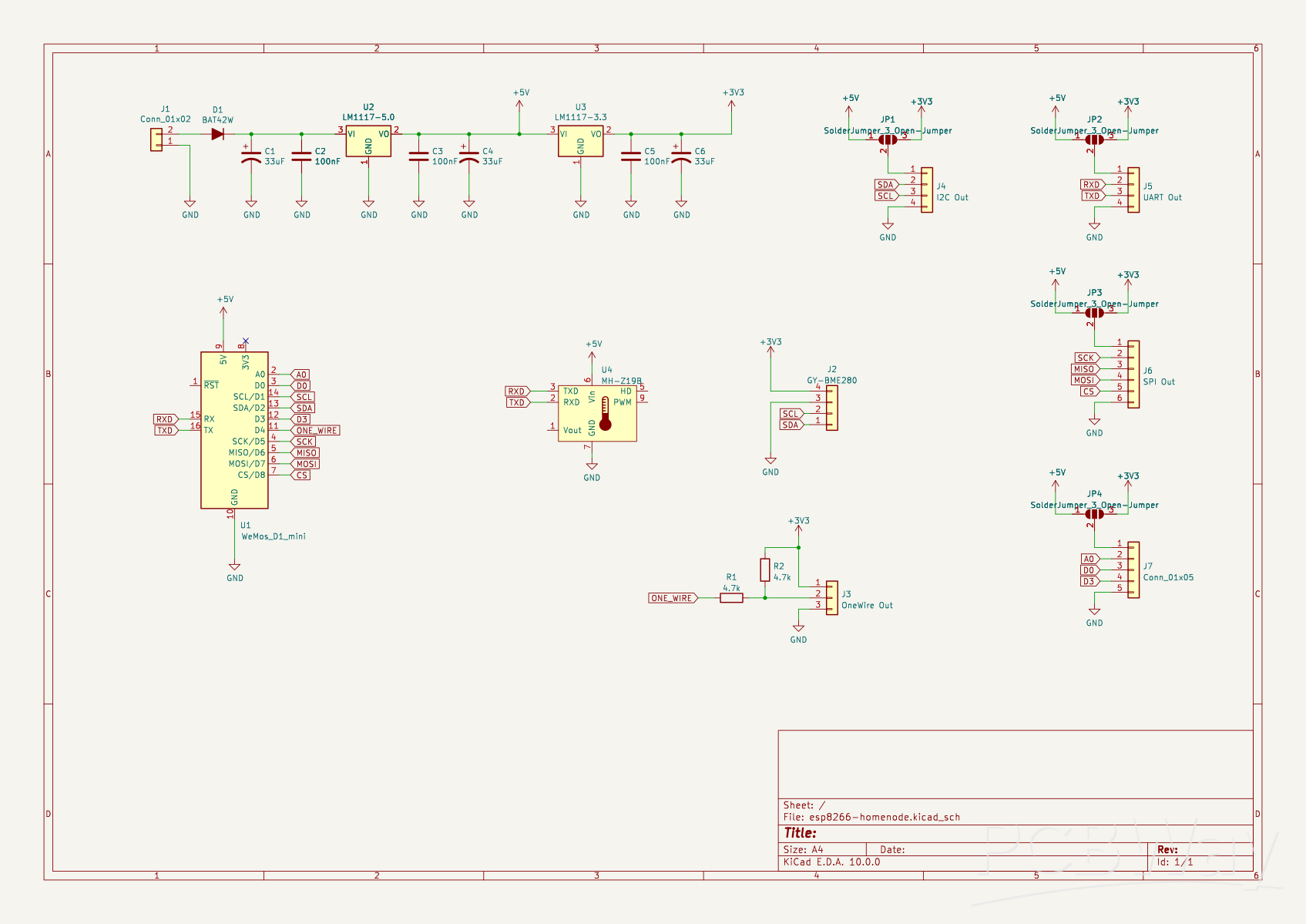

Schematic

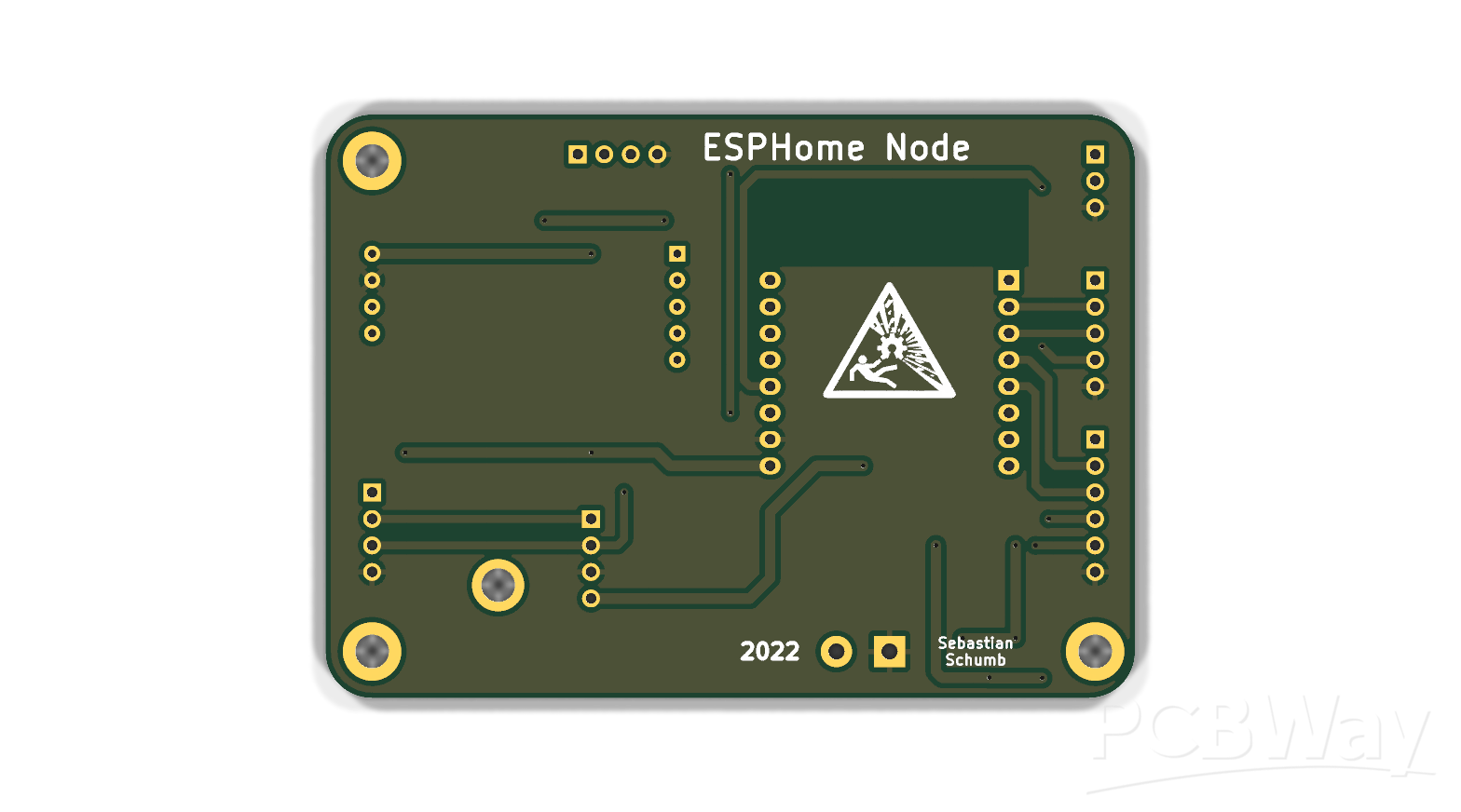

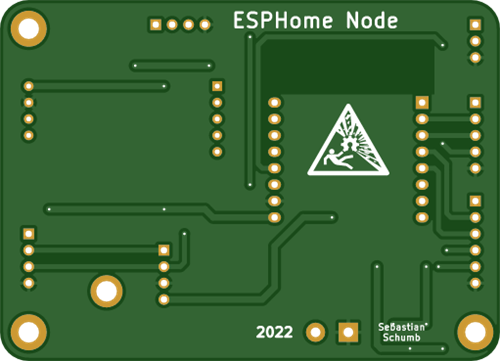

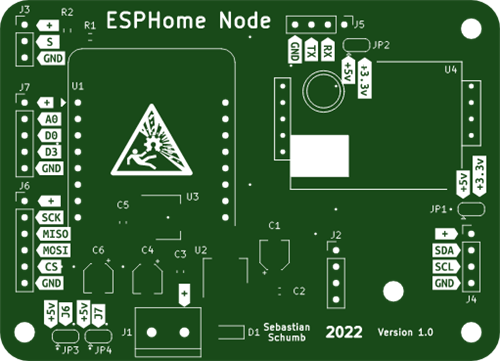

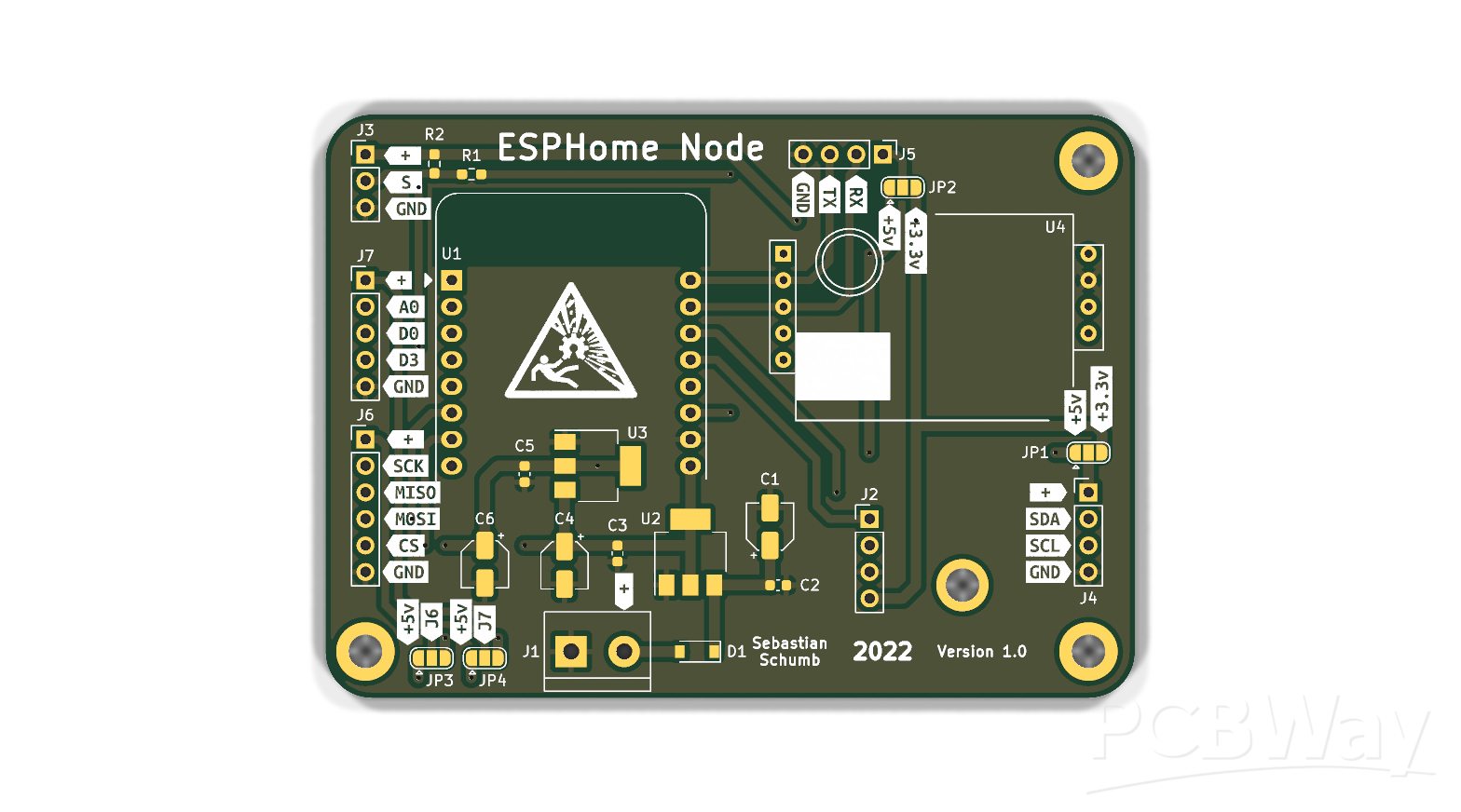

Renders
Schematic and Layout
forgejo.zenerdio.de/sebastian/esp8266-homenode
https://forgejo.zenerdio.de/sebastian/esp8266-homenode
Apr 02,2026
12 views
ESPHome Node
A board for using the Wemos D1 Mini ESP8266 module, a MHZ-19 CO2 sensor and BME-280 temp/pressure/humidity sensor with ESPHome.
12
0
0
Published: Apr 02,2026
Standard PCB
Download Gerber file 0
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
File Last Updated: 2026/04/02 (GMT+8)
File update record
2026-04-0220:26:39
Centroid file is updated.
2026-04-0220:26:39
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Copyright Info
CERN-OHL-P-2.0 License
Read More⇒
Under the
CERN-OHL-P-2.0
License.
