usb midi interface

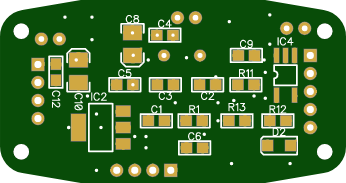

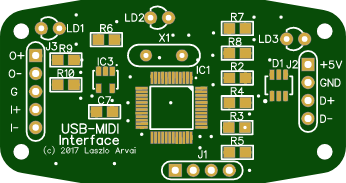

This is a replacement board for the cheap chineese USB to MIDI converter for fixing all issues with the cheap electronics.
The original converter has some design flaws. It has usually no optocoupler on the MIDI input which makes it incompatible with some devices. The firmware has more problems: the midi running status is not handled on the input side, stange "note on" messages are inserted in the case of receiving running status for any controller. The sysex handling is completelly disaster, it handles the first few bytes correctly, after that it starts loosing data bytes, usually all bytes. The sysex input is the same, only the first few bytes are received, the other is discarded or only garbage is received.
This hardware fixes those issues and makes the cable suitable for daily usage.
Further information and firmware on the github
usb midi interface
*Wpsload community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Attribution-ShareAlike (CC BY-SA) License
Read More⇒
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
- Comments(0)
- Likes(1)
More by Alexiev
-
usb midi interface
This is a replacement board for the cheap chineese USB to MIDI converter for fixing all issues with ...
-
short for Si5351A Pico Breakout Board
The Si5351APicoBoB (short for Si5351A Pico Breakout Board) is a specialized version of the clock gen...
-
Si5351A Breakout Board
This project is a specialized breakout board for the Si5351A clock generator chip, designed by Jason...
-
Low Pass Filter (LPF) module v1
This is a high-performance Low Pass Filter (LPF) module designed specifically for amateur radio appl...
-
Low Pass Filter (LPF) module v2
This is a high-performance Low Pass Filter (LPF) module designed specifically for amateur radio appl...
-

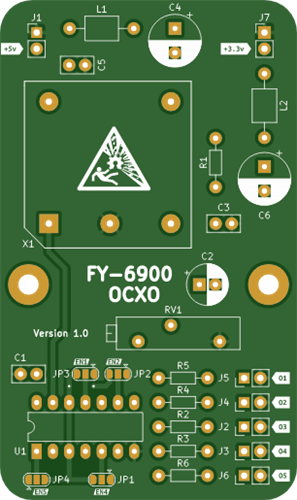

FY6900 OCXO
