L293D |
x 1 | |
|
|

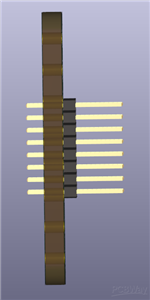

1x08 P2.54mm Vertical male pin header |
x 2 |
|
KiCad 9.0 |

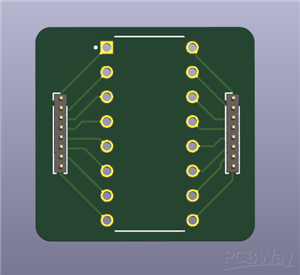

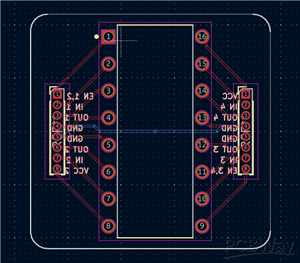

pcb adapter for L293D

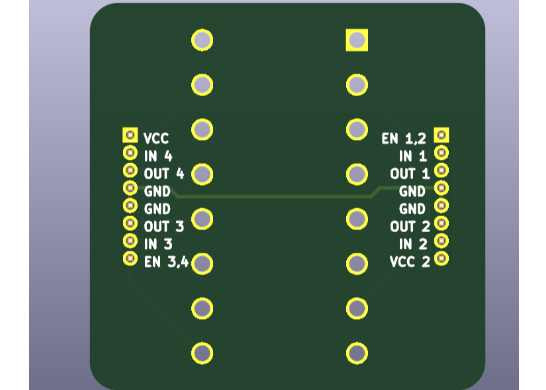

a connector for an l293d which is easier to wire up and integrate into your circuit as you can see what each pin represents instead of looking at the pinout of an l293D which saves time. This makes it easier to debug as you can more easily see where the wires are and you can keep it away from the rest of your circuit so it'll look cleaner and more beneficial.
pcb adapter for L293D
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Attribution-ShareAlike (CC BY-SA) License
