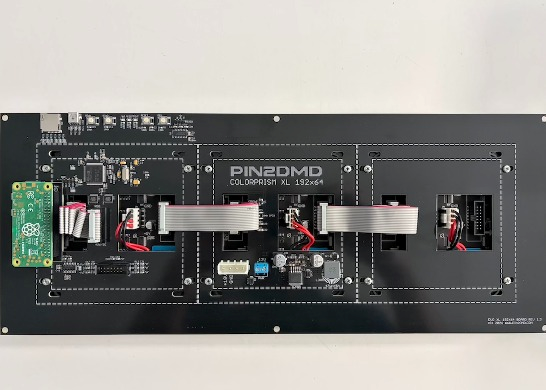

PIN2DMD EVO192x64 RGB LED Dotmatrix Pinball Display Controller
!!! This offer is a for PCB only . For fully assembled PCBs use the attached BOM file and ask a pcbway representative for Turnkey Assembly Service !!!
This is the special version of PIN2DMD EVO pcb for Sega pinball machines which use large 192x64 dotmatrix displays
With the PIN2DMD project you get a full color LED DMD controller for real and virtual pinball machines.
It currently supports:
- Visual Pinball / PinMame
- Future Pinball using DMD interceptor DLL from Macro
- Unit3d Pinball
- Ultra DMD support (Stephen)
- PinballX / XDMD support (Tom Speirs)
- Pinball fx2 support using dmdext from Freezy
- The Pinball Arcade support using dmdext from Freezy and NoEx
- Colorized Stern ROMs using SmartDMD inframe and serial sidechannel color switching
- Frame colorization of all pinball machines using PIN2DMD Editor (please don′t use copyrighted content )
- WPC real pinball input
- Stern SAM real pinball input
- Stern Whitestar real pinball input
- DataEast real pinball input
- WPC95 real pinball input
- Gottlieb real pinball input
- Stern Spike real pinball input
- Capcom real pinball input
- AlvinG real pinball input
- Spooky pinball real pinball input
- Data East 128×16 real pinball input
- WCID automated USB driver installation
- easy firmware upgrade through USB or microSD
More Info on pin2dmd.com
PIN2DMD EVO192x64 RGB LED Dotmatrix Pinball Display Controller
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Attribution-ShareAlike (CC BY-SA) License
