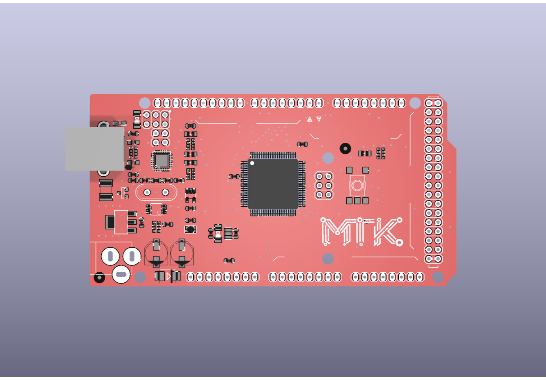

ATmega2560 Development Board PCB

This project presents a custom-designed ATmega2560-based development board, engineered to provide a powerful and flexible platform for advanced embedded system applications. The board exposes a large number of input/output pins, integrates essential support circuitry such as USB-to-UART communication, power regulation, and clock generation, enabling seamless programming and real-time operation.

The ATmega2560 microcontroller offers 54 digital I/O pins, 16 analog inputs, and multiple UART interfaces, making it highly suitable for complex projects that require extensive peripheral connectivity. (wpsload.com)

This design focuses on delivering a compact, efficient, and customizable alternative to standard Arduino Mega boards, allowing developers to directly integrate the system into real-world applications without unnecessary overhead.

?? Key Features

ATmega2560 microcontroller with high I/O capability

54 digital I/O pins (including PWM outputs)

16 analog input channels

Multiple UART communication interfaces

Onboard USB-to-UART interface for easy programming

Integrated power supply regulation

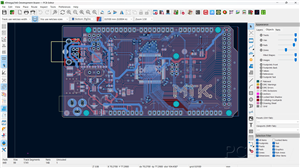

Compact and optimized PCB layout

? Applications (Real-Time Usage)

? Robotics & Automation

Complex robot control systems

Multi-sensor integration

CNC and motion control

? IoT & Smart Systems

Smart home controllers

Data acquisition and monitoring systems

Networked embedded devices

? Industrial Embedded Systems

Process control units

Machine automation systems

Real-time monitoring and control

? Advanced Prototyping

Large-scale embedded projects

Multi-device interfacing systems

Research and development platforms

? Real-Time Advantages

? 1. High I/O Capability

Supports large numbers of sensors and actuators simultaneously.

? 2. Powerful Processing

Provides higher memory and performance compared to smaller controllers.

? 3. Reliable Integration

All essential components are integrated into a single PCB for stable operation.

? 4. Scalable Design

Suitable for both prototyping and final product deployment.

? 5. Reduced System Complexity

Eliminates the need for external modules and excessive wiring.

? Why This Project Matters

Many embedded applications require more I/O and processing capability than standard boards. This project addresses that by:

Providing a high-performance embedded platform

Enabling complex system development

Supporting real-world industrial and IoT applications

? Simple Explanation

Think of this as:

? “A powerful Arduino Mega system built into a compact, deployment-ready PCB
