PCB for DDS-VFO / Signal Generator

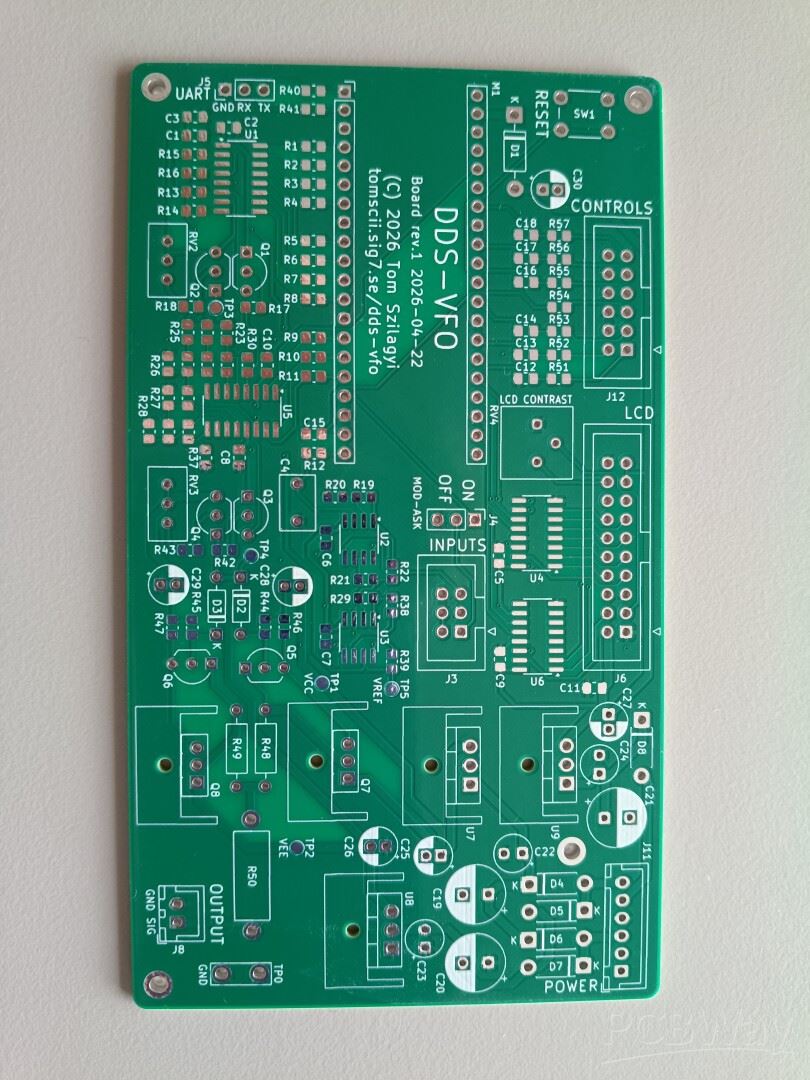

This PCB is for a project aiming to build a direct digital synthesis (DDS) signal generator. The project will be published on my blog (tomscii.sig7.se) once completed. The article will include a more complete review of the whole Wpsload customer experience. So far, I have only visually inspected this PCB, but it looks perfect!



Apr 27,2026
